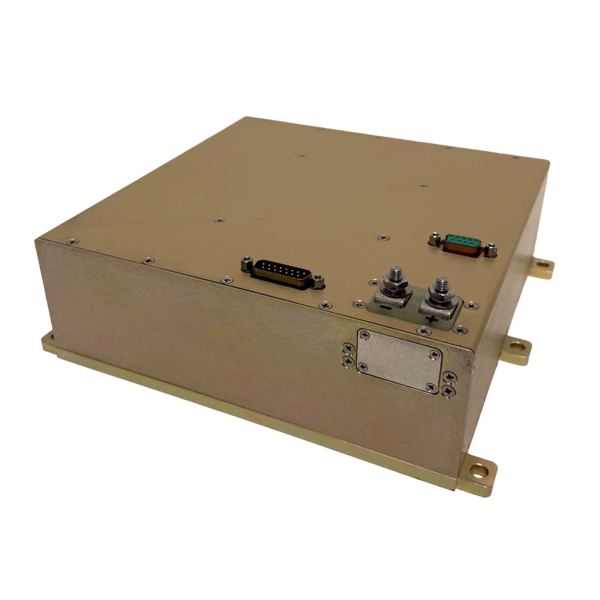

M3111 Series AC-DC Power Supplies Three Phase

Key Features
Product Type:Power Supply (Converter)
Input:AC
Output(s):One
Output Power:1000W
Efficiency:88%
Operating Temp.:-40°C to 71°C
Designed to Meet:MIL-STD-704 | MIL-STD-810 | MIL-STD-461
Standard Configurations
Model Power
M3111 Additional configurations available

* All of our products can be configured to comply with EU REACH regulations. Contact Us today to learn more.

Base Specifications
Form Factor:Baseplate Mount
Weight:97oz2.75kg
Dimensions:7.88" X 9.2" X 2.75"200.15mm X 233.7mm X 69.85mm
Current Share:Yes
*

Product specifications and features subject to change without notice.
Please contact our factory before placing order.

Output Range(V min to V max @ A max)
#1 5V to 50V @ 40AA
Description

Three-Phase AC/DC power supply with hold up.
