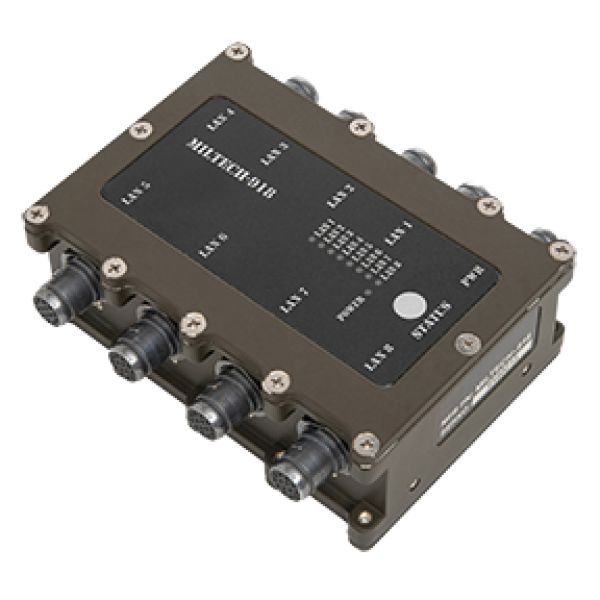

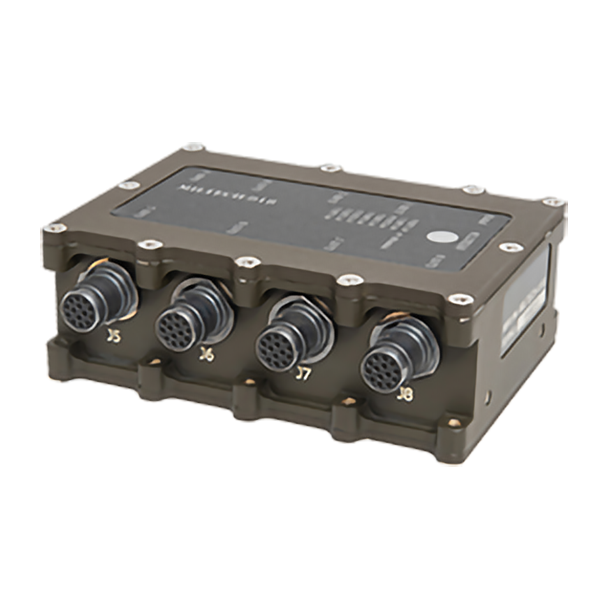

MILTECH 918 Small Military-Grade, Layer 2 fully managed Gigabit Ethernet switch - 8 Port.

Key Features
Product Type:Ethernet switch
Management:Managed
Ports:
8 x 10/100/1000M Copper
Connectors:
Power: SCE2
LAN: SCE2
Designed to Meet:MIL-STD-1275 | MIL-STD-704 | MIL-STD-810 | MIL-STD-461 | IP68
Dimensions:3.94" X 3.5" X 1.42"100mm X 89mm X 36mm
Weight:13.76oz390g
Operating Temp.:-45°C to 85°C
Power input:24VDC (16 - 36VDC), 8W

The Miltech 918 is a fully managed military grade Layer 2 Ethernet switch with advanced Layer 3 static routing capabilities. It has 8 triple-speed (10/100/1000Mbps) ports and use 4VDC power. It is specifically designed for complex traffic applications featuring IEEE-STD-1588 (PTP) Capabilities and Synchronous Ethernet (SyncE).

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY
Standard Configurations
Model Description
1-918-000 Managed 16VDC - 36VDC
1-918-001 Managed 16VDC - 36VDC Dual Power Input
1-918-002 Managed 12VDC - 36VDC
1-918-100 Enhanced Managed 16VDC - 36VDC
1-918-101 Enhanced Managed 16VDC - 36VDC Dual Power Input
1-918-102 Enhanced Managed 12VDC - 36VDC
MILTECH 918 Additional configurations available
  • 2-CBL9028LAN 2-CBL9028LAN 3M lan harness
  • 2-CBL918PWR3M 2-CBL918PWR3M 3M power harness
  • 2-CBL9028LN+ 2-CBL9028LN+ 3M lan and console harness, SCE2 to RJ45 + DB9
Description

The MILTECH 918 is an 8 port ethernet switch which can be remotely managed to deliver Layer 2 switching to optimize on-vehicle communications traffic prioritization between IP-based devices such as communication and navigation systems, sensors, video cameras and targeting systems.

Advanced network features, never before found in a package of this size, include switching protocols, virtual LANS (VLANS), traffic prioritization (QoS), and bandwidth aggregation are standard. Layer 3 static routing enables on-device IPv4 and IPv6 static routing between VLANs without having to add a router upstream. This further reduces the amount of equipment, weight, and expenditures on mobile military platforms.

With the best combination of size, weight, and cost (SWaP-C) in the industry, it saves valuable real estate in mobile platforms with space and weight limitations such as: Unmanned and compact aerial platforms, mobile ground vehicles and UGVs and autonomous surface and underwater craft.
