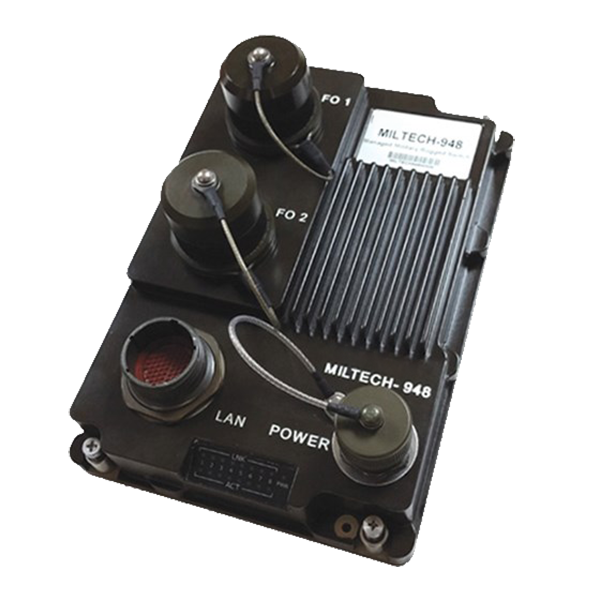

MILTECH 948 Compact Rugged Military Managed Gigabit Ethernet Switch with 2 Fiber Optic LAN Channels

Key Features
Product Type:Media converter
Management:Managed
Ports:
8 x 10/100/1000M Copper
2 x 1G Fiber
Connectors:
Power: D38999
LAN: D38999
Fiber: TFOCA
Designed to Meet:MIL-STD-1275 | MIL-STD-704 | IP67
Dimensions:8.23" X 5.75" X 2.48"209mm X 146mm X 63mm
Weight:38.8oz1100g
Operating Temp.:-45°C to 85°C
Power input:24VDC (18 - 32VDC), 7W

The MILTECH 948 is a rugged fully managed military-grade Ethernet switch combined with media convertesion capabilities. It offers 8 triple-speed (10/100/1000Mbps) ports and the option of two fiber port operating at either 100Mbps or 1Gbps.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY
Standard Configurations
Model Description
1-948-XXX Managed 8 x switched 10/100 /1000 ports + up to 2 x Fiber ports
MILTECH 948 Additional configurations available
  • 2-CBL908MPPW 2-CBL908MPPW Power harness 1 x D38999 connector to open wires & DB9 connector 3 meter length
  • 2-CBL908MPLAN 2-CBL908MPLAN LAN harness for 8 LAN ports, 1 x D38999 connector to 8 x RJ45 connectors, 3 meters length
Description

The MILTECH 948's flexible configurationallows it to act as both a physical media converter and and gigabit Ethernet switch. With both copper and fiber ports lets it can act as a physical media converter to bridge a change in physical media or extend a LAN connection.

As a fully managed switch, it supports all the latest network protocols for redundant link topology, security, multicast and management requirements. It is a compact solution for managing both Ethernet and high-speed fiber connections to IP-networked devices.

Developed for military and harsh avionic applications the MILTECH 948 features mechanical packaging enhancements designed to withstand excessive vibration and temperature variation to meet MIL-STD-810G airborne and ground environmental compliance. Using nominal 24 VDC power the MILTECH 948 can be easily integrated in to most vehicle and avionic electronic systems.

948 table

Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.
