MILTECH 2042 Military Rugged Video/Serial/IO/LAN Over Fiber Communication System

Download Data Sheet Here
Key Features
Product Type:Media converter
Management:Managed
Ports:
4 x 1G Fiber
4 x Serial
4 x Composite Video
Connectors:
Power: D38999
LAN: D38999
Fiber: D38999
Service: D38999
I/O: D38999
Video: D38999
Designed to Meet:MIL-STD-1275 | MIL-STD-704 | MIL-STD-810 | MIL-STD-461 | IP67
Dimensions:18.98" X 8.19" X 1.73"482mm X 208mm X 44mm
Weight:105.82oz3000g
Operating Temp.:-40°C to 71°C
Power input:24VDC (18 - 36VDC), 20W

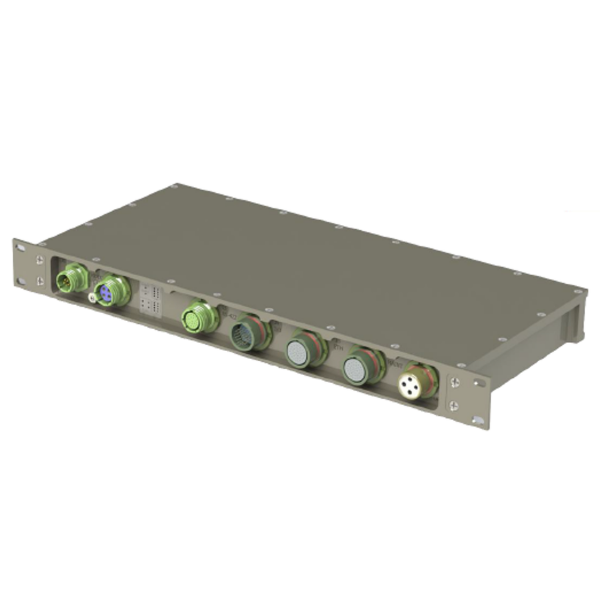

MILTECH™2042 is a rugged MIL-STD media converter/transceiver system that allows communicating end to end RS422/Discrete/IO/Composite Video/Ethernet over four F/O channels

Standard Configurations
Model Description
MILTECH 2042 Additional configurations available
Description
MILTECH™2042 Series is a MIL-STD rugged, communication system intended for transferring Video, Serial (RS-422), Discrete Signals and Gigabit Ethernet over single-strand Tactical Fibers. Providing 4 x 10/100/1000Base-T ports, 1Gb Fiber optic, 4 x RS422 serial interfaces, 2 x Composite Video inputs/outputs and 7 x Discrete inputs and outputs, this device is designed to meet the needs of manned/autonomous vehicles, Avionics and UAVs, and mobile equipment in battlefield environments.
