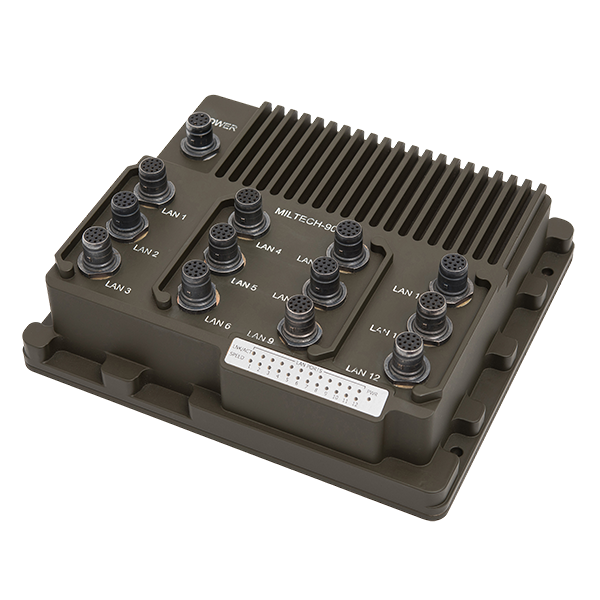

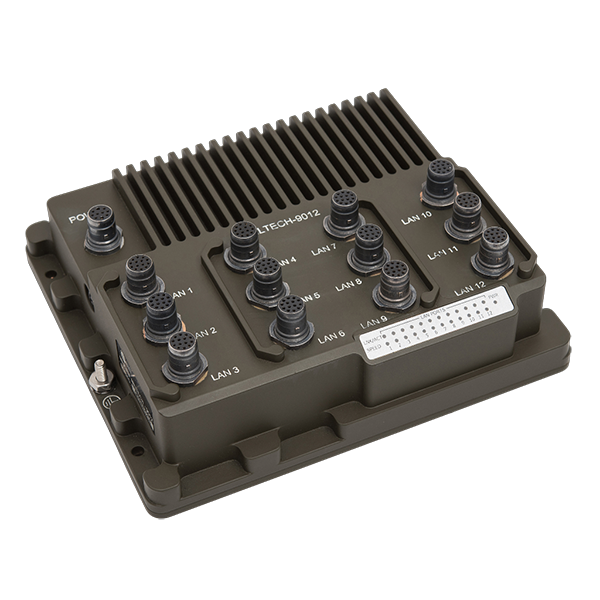

MILTECH 9012 Compact Military Managed Gigabit Ethernet Switch/Router - 12 Port

Key Features
Product Type:Router
Management:Managed
Ports:
12 x 10/100/1000M Copper
Connectors:
Power: SCE2
LAN: SCE2
Designed to Meet:MIL-STD-1275 | MIL-STD-704 | MIL-STD-810 | MIL-STD-461 | IP68
Dimensions:6.55" X 5.67" X 2.2"166.4mm X 144mm X 56mm
Weight:38.8oz1100g
Operating Temp.:-45°C to 85°C
Power input:24VDC (18 - 70VDC), 13W

The MILTECH 9012 is a member of the MILTECH 9012 family that offers flexible alternatives for LAN, LAN/WAN, and customizable networking. All family members are MIL-STD, fully managed, and military grade, with 12 triple-speed (10/100/1000Mbps) ports. The MILTECH 9012 is a unique combination of both a Layer 2 Ethernet switch and a Layer 3 Ethernet router. This highly-integrated, compact form factor switch/router saves valuable real estate on mobile military platforms including:
Battle management systems (BMSs), UAVs, Manned and autonomous land vehicles (UGVs), Robots, Mobile equipment fielded in harsh environment.
It is an ideal solution for connecting IP-based voice, video, sensor data acquisition, and other communication devices that require both on-vehicle LAN management and off-vehicle WAN connectivity.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY
Standard Configurations
Model Description
MILTECH 9012 Additional configurations available
  • 2-CBL9012CLAN 2-CBL9012CLAN 3M lan harness
  • 2-CBL9012PWR 2-CBL9012PWR 3M power harness
  • 2-CBL9012CLN+ 2-CBL9012CLN+ 3M lan and console harness, SCE2 to RJ45 + DB9
Description

The MILTECH 9012 switching and routing capabilities, includes virtual LANS (VLANS), traffic prioritization/QoS, IPv4/IPv6 dynamic routing, and bandwidth aggregation. It supports all the latest networking protocols for redundancy, security, multicast, and management. Remote management allows for centralized traffic optimization and prioritization of mission-critical data.

The MILTECH 9012 uses industry-standard 24VDC power and is designed for MIL-STD-810F, MIL-STD-461E, MIL-STD-1275B & MIL-STD-704A airborne, ground mobile environmental, EMI/RFI compliance with high reliability.
